Using Variables in EV3, where to start? – Damien Kee
Sep 30, 2014
I’m often asked what ‘variables’ are and how are they useful? How would I go about teaching them in class? Well the question was raised again this week on our Robotics in Education Mailing list so I thought I’d do a very quick blog post on how I approach it.

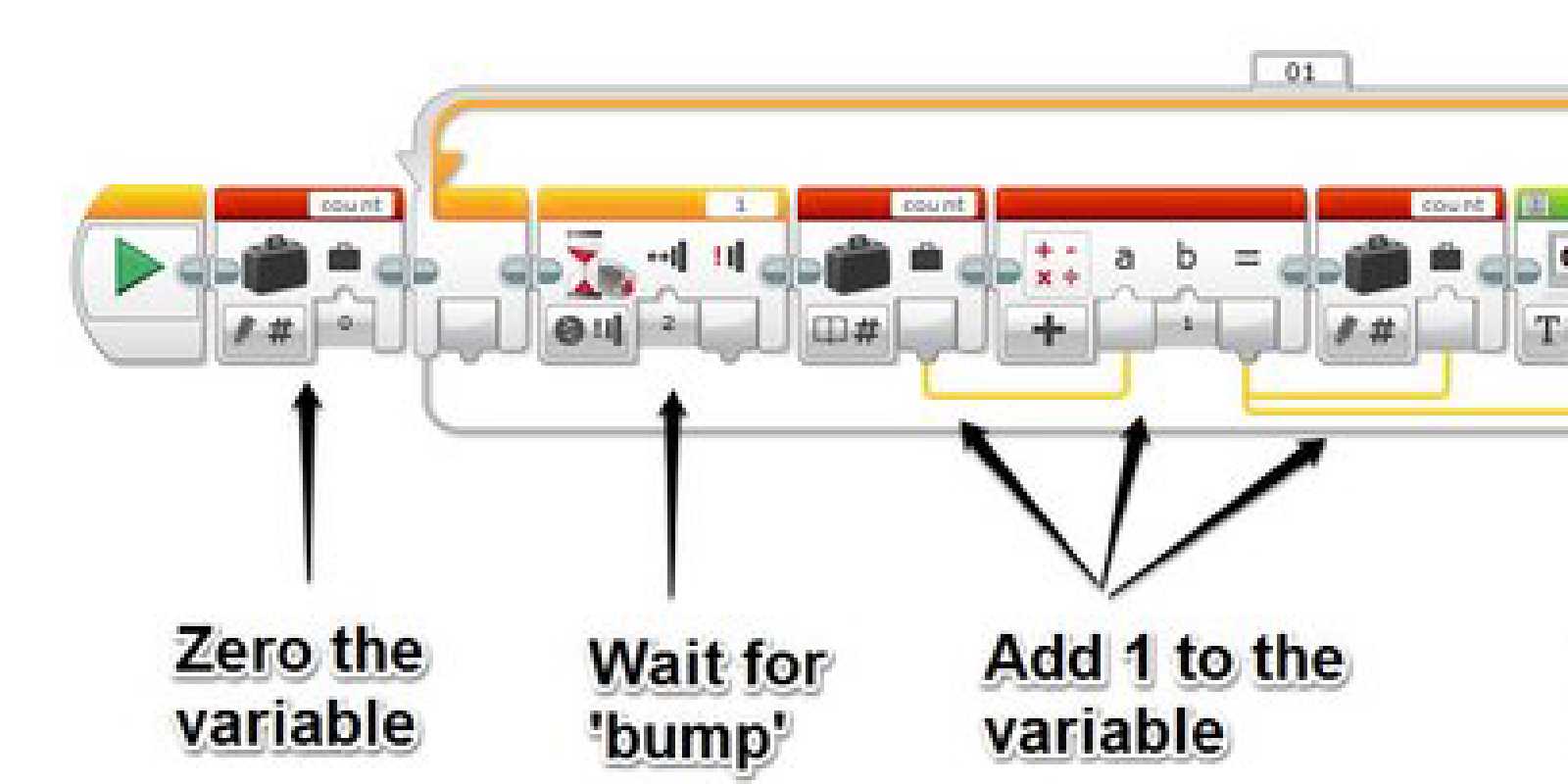

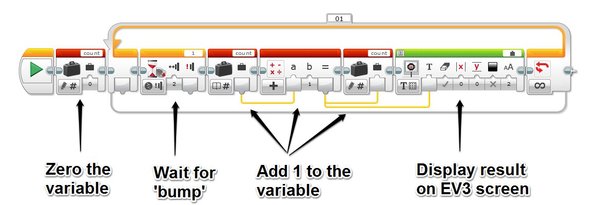

Count the number of times a button is pressed and display on the screen. (click for large version)
Basically the program is as follows
Write a ‘0’ to the ‘count’ variable (just in case it was something else)
Wait for someone to bump the touch sensor (not push)
Take the variable -> Add 1 to it -> store the new number back in the variable
Display the variable number on the screen
Loop back to wait for the next button press
Ask the kids why they don’t see the ‘0’ when the program starts, but do see the ‘1’ the first time the button is pressed. Ask them to fix it up so they see a 0.
We then take this and add another button and make a voting machine. Do you like Chocolate or Vanilla Icecream? This is then a great lead in for statistics etc 🙂
